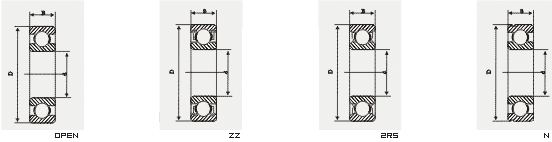

| Deep Groove Ball Bearings |
|
| |
| Deep Groove Ball
Bearings |
| Bearing No. |
dxDxB(mm) |
Weight(kg) |
| 6000 |
10x26x8 |
0.019 |
| 6001 |
12x28x8 |
0.022 |
| 6002 |
15x32x9 |
0.030 |
| 6003 |
17x35x10 |
0.039 |
| 6004 |
20x42x12 |
0.069 |
| 6005 |
25x47x12 |
0.080 |
| 6006 |
30x55x13 |
0.116 |
| 6007 |
35x62x14 |
0.155 |
| 6008 |
40x68x15 |
0.190 |
| 6009 |
45x75x16 |
0.237 |
| 6010 |
50x80x16 |
0.260 |
| 6011 |
55x90x18 |
0.390 |
| 6012 |
60x95x18 |
0.414 |
| 6013 |
65x100x18 |
0.421 |
| 6014 |
70x110x20 |
0.604 |
| 6015 |
75x115x20 |
0.649 |
| 6016 |
80x125x22 |
0.850 |
| 6017 |
85x130x22 |
0.890 |
| 6018 |
90x140x24 |
1.020 |
| 6019 |
95x145x24 |
1.080 |
| 6020 |
100x150x24 |
1.150 |
| 6021 |
105x160x26 |
1.600 |
| 6022 |
110x170x28 |
1.950 |
| 6024 |
120x180x28 |
2.050 |
| 6026 |
130x200x33 |
3.150 |
| 6028 |
140x210x33 |
3.350 |
| 6030 |
150x225x35 |
4.800 |
| 6032 |
160x240x38 |
5.050 |
| 6034 |
170x260x42 |
6.760 |
| 6036 |
180x280x46 |
8.800 |
| 6038 |
190x290x46 |
9.180 |
| 6040 |
200x310x51 |
11.900 |
| 6044 |
220x340x56 |
15.700 |
| 6200 |
10x30x9 |
0.032 |
| 6201 |
12x32x10 |
0.037 |
| 6202 |
15x35x11 |
0.045 |
| 6203 |
17x40x12 |
0.065 |
| 6204 |
20x47x14 |
0.110 |
| 6205 |
25x52x15 |
0.130 |
| 6206 |
30x62x16 |
0.200 |
| 6207 |
35x72x17 |
0.290 |
| 6208 |
40x80x18 |
0.370 |
| 6209 |
45x85x19 |
0.410 |
| 6210 |
50x90x20 |
0.460 |
| 6211 |
55x100x21 |
0.610 |
| 6212 |
60x110x22 |
0.780 |
| 6213 |
65x120x23 |
0.990 |
| 6214 |
70x125x24 |
1.050 |
| 6215 |
75x130x25 |
1.200 |
| 6216 |
80x140x26 |
1.400 |
| 6217 |
85x150x28 |
1.800 |
| 6218 |
90x160x30 |
2.150 |
| 6219 |
95x170x32 |
2.600 |
| 6220 |
100x180x34 |
3.150 |
| 6221 |
105x190x36 |
3.700 |
| 6222 |
110x200x38 |
4.350 |
| 6224 |
120x215x40 |
5.150 |
| 6226 |
130x230x40 |
5.800 |
| 6228 |
140x250x42 |
7.570 |
| 6230 |
150x270x45 |
9.400 |
| 6232 |
160x290x48 |
11.700 |
| 6234 |
170x310x52 |
14.500 |
| 6236 |
180x320x52 |
15.100 |
| 6238 |
190x340x55 |
18.200 |
| 6240 |
200x360x58 |
21.600 |
| 6244 |
220x400x65 |
30.200 |
| 6300 |
10x35x11 |
0.053 |
| 6301 |
12x37x12 |
0.060 |
| 6302 |
15x42x13 |
0.082 |
| 6303 |
17x47x14 |
0.120 |
| 6304 |
20x52x15 |
0.140 |
| 6305 |
25x62x17 |
0.230 |
| 6306 |
30x72x19 |
0.350 |
| 6307 |
35x80x21 |
0.460 |
| 6308 |
40x90x23 |
0.630 |
| 6309 |
45x100x25 |
0.830 |
| 6310 |
50x110x27 |
1.050 |
| 6311 |
55x120x29 |
1.350 |
| 6312 |
60x130x31 |
1.700 |
| 6313 |
65x140x33 |
2.100 |
| 6314 |
70x150x35 |
2.500 |
| 6315 |
75x160x37 |
3.000 |
| 6316 |
80x170x39 |
3.600 |
| 6317 |
85x180x41 |
4.250 |
| 6318 |
90x190x43 |
4.900 |
| 6319 |
95x200x45 |
5.650 |
| 6320 |
100x215x47 |
7.000 |
| 6321 |
105x225x49 |
8.050 |
| 6322 |
110x240x50 |
9.550 |
| 6324 |
120x260x55 |
12.400 |
| 6326 |
130x280x58 |
15.300 |
| 6328 |
140x300x62 |
18.500 |
| 6330 |
150x320x65 |
22.000 |
| 6403 |
17x62x17 |
0.270 |
| 6404 |
20x72x19 |
0.400 |
| 6405 |
25x80x21 |
0.530 |
| 6406 |
30x90x23 |
0.740 |
| 6407 |
35x100x25 |
0.950 |
| 6408 |
40x110x27 |
1.250 |
| 6409 |
45x120x29 |
1.550 |
| 6410 |
50x130x31 |
1.900 |
| 6411 |
55x140x33 |
2.300 |
| 6412 |
60x150x35 |
2.750 |
| 6413 |
65x160x37 |
3.300 |
| 6414 |
70x180x42 |
4.850 |
| 6415 |
75x190x45 |
6.800 |
| 6416 |
80x200x48 |
6.760 |
| 16001 |
12x28x7 |
0.019 |
| 16002 |
15x32x8 |
0.025 |
| 16003 |
17x35x8 |
0.032 |
| 16004 |
20x42x8 |
0.050 |
| 16005 |
25x47x8 |
0.060 |
| 16006 |
30x55x9 |
0.085 |
| 16007 |
35x62x9 |
0.110 |
| 16008 |
40x68x9 |
0.125 |
| 16009 |
45x75x10 |
0.170 |
| 16010 |
50x80x10 |
0.180 |
| 16011 |
55x90x11 |
0.260 |
| 16012 |
60x95x11 |
0.280 |
| 16013 |
65x100x11 |
0.307 |
| 16014 |
70x110x13 |
0.430 |
| 16015 |
75x115x13 |
0.464 |
| 16016 |
80x125x14 |
0.600 |
| 16017 |
85x130x14 |
0.630 |
| 16018 |
90x140x16 |
0.850 |
| 16019 |
95x145x16 |
0.890 |
| 16020 |
100x150x16 |
0.910 |
| 16021 |
105x160x18 |
1.200 |
| 16022 |
110x170x19 |
1.450 |
| 16024 |
120x180x19 |
1.600 |
| 16026 |
130x200x22 |
2.310 |
| 16028 |
140x210x22 |
2.450 |
| 16030 |
150x225x24 |
3.070 |
| 16032 |
160x240x25 |
3.640 |
| 6800 |
10x19x5 |
0.0055 |
| 6801 |
12x21x5 |
0.0063 |
| 6802 |
15x24x5 |
0.0074 |
| 6803 |
17x26x5 |
0.0082 |
| 6804 |
20x32x7 |
0.0180 |
| 6805 |
25x37x7 |
0.0220 |
| 6806 |
30x42x7 |
0.0270 |
| 6807 |
35x47x7 |
0.0300 |
| 6808 |
40x52x7 |
0.0340 |
| 6809 |
45x58x7 |
0.0400 |
| 6810 |
50x65x7 |
0.0520 |
| 6811 |
55x72x9 |
0.0830 |
| 6812 |
60x78x10 |
0.1100 |
| 6813 |
65x85x10 |
0.1300 |
| 6814 |
70x90x10 |
0.1400 |
| |
|
|
| 6900 |
10x22x6 |
0.010 |
| 6901 |
12x24x6 |
0.011 |
| 6902 |
15x28x7 |
0.016 |
| 6903 |
17x30x7 |
0.018 |
| 6904 |
20x37x9 |
0.038 |
| 6905 |
25x42x9 |
0.042 |
| 6906 |
30x47x9 |
0.048 |
| 6907 |
35x55x10 |
0.074 |
| 6908 |
40x62x12 |
0.120 |
| 6909 |
45x68x12 |
0.128 |
| 6910 |
50x72x12 |
0.140 |
| 6911 |
55x80x13 |
0.180 |
| 6912 |
60x85x13 |
0.200 |
| 6913 |
65x90x13 |
0.206 |
| 6914 |
70x110x16 |
0.350 |
|
| |
|
